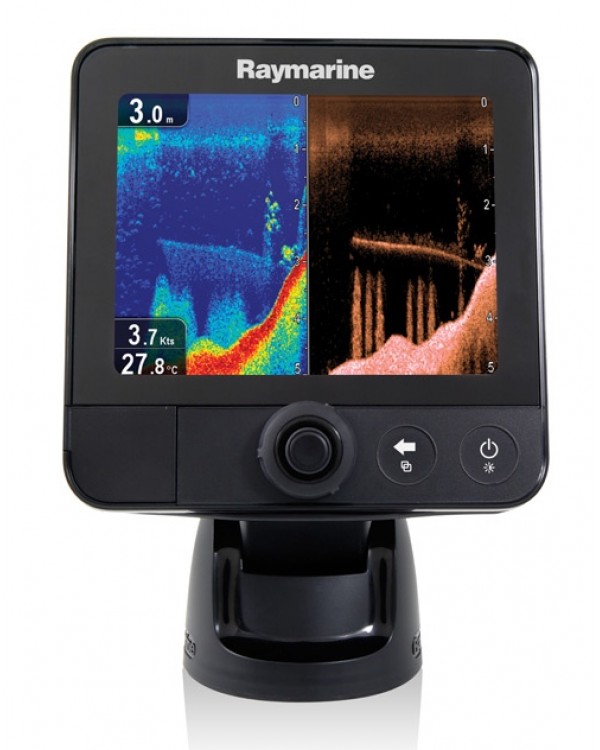

Raymarine Dragonfly 6 & Dragonfly 7 Sonar GPS
Qty:
Experience Visionality™ with Dragonfly and Dragonfly7 Sonar GPS

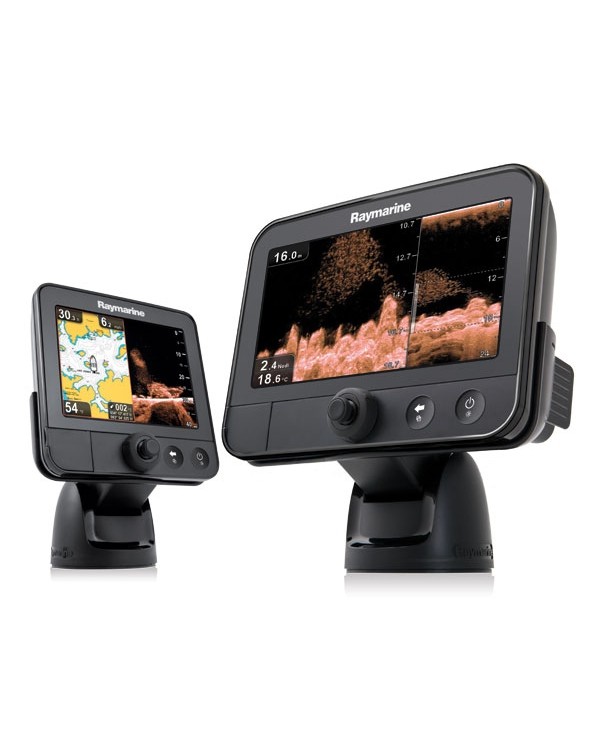

- Choice of display size: Dragonfly (5.7") and Dragonfly7 (7")

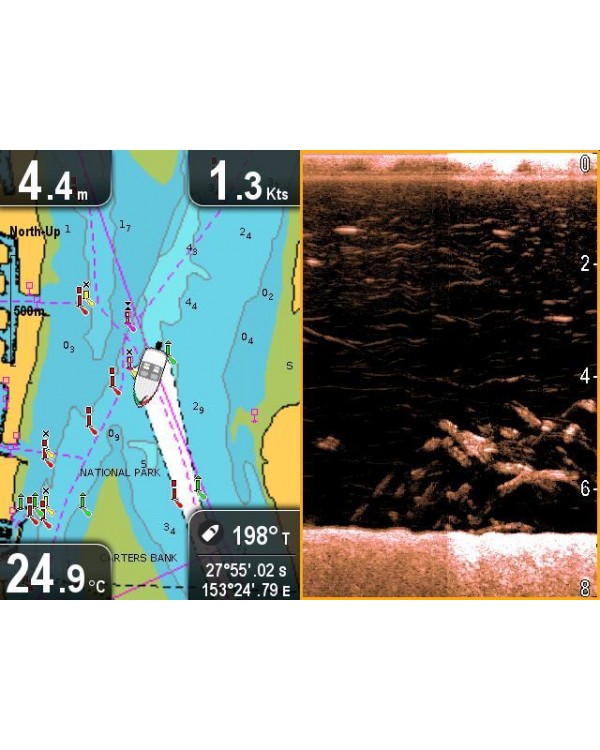

- Photo-like imagery of bottom structure using CHIRP DownVision™
- CHIRP powered Dual Channel sonar; display high resolution structure images and target fish at the same time
- Fast response temperature sensor built into the transducer
- Built in 50-channel GPS sensor with fast-acquisition technology
- Available with industry leading, Navionics charts included on microSD. View available models
- Intuitive user interface simplifies display choices and menu options
- Ideal for open cockpit installations thanks to spray and submersion protection to IPX6 and IPX7 standards
- Tilt/swivel quick release holster with optional locking core for added security
| product | |
| Operating voltage range | 10.8 - 15.6v |
| Power consumption at full brightness | 10 watts |
| Connections | Power/transducer combined input |
| Warranty | 1 year Warranty* |
| Waterproofing standard | IPX 6 and IPX 7 |
| Display size | Dragonfly: 5.7" | Dragonfly7: 7" |
| Display resolution | Dragonfly: 640 x 480 | Dragonfly7: 800 x 640 |
| Brightness | 1500 nits |
| GPS and Cartography | |
| GPS | 50 Channel Internal |
| Chart Compatibility | LightHouse Vector and Raster Charts, Navionics Silver, Gold and HotMaps |
| Waypoints | 3000 |
| Sonar | |
| Sonar Type | CHIRP Sonar - CPT-60 dual-beam CHIRP transducer supplied with product (check ordering information) (Cable length 6m) |
| Sonar Channels | 2 |
| Depth Range | CHIRP DownVision and CHIRP Sonar imagery 600ft |
| In the box | |
| Typical box contents | 1 Display Cradle 2 Display 3 Transducer 4 Cradle securing bolt 5 Documentation pack 6 Escutcheon and mounting screws (for through transom cable installation) 7 Display cradle base 8 Transducer bracket mounting screws 9 P-clips and screws 10 Fixing for cradle mounting |
